Electric Inline Heater Advantage

Our immersion heaters are a fast and efficient way of heating fluids used in the drilling process, reducing waste, time and costs. Direct heat transfer and circulation is used to warm drilling fluids such as invert, water based mud, brine and cement water until desired temperature is achieved.  An adjustable thermostat and continuous circulation is used to manage and maintain temperatures. Heaters require minimal maintenance and seamlessly integrate with existing equipment.

Benefits

Specifications

Specifications

  • Maintain optimal rheology and mud properties
  • Lower viscosity reduces time and losses on mud swaps
  • Supports faster drilling without shocking hole conditions
  • Reduce valuable product use and waste
  • Direct contact heating elements eliminates  contamination
  • Typically 12-24 hours to achieve  optimal temperature
  • Units can be daisy-chained for faster heat-up

Specifications

Specifications

Specifications

  • 20kw direct contact stainless steel heating element
  • Heating element density of 6w/sq. In.
  • 3'' and 4'' camlock inlet/outlet included
  • 520 lbs -  1m wide, 1.5m tall, 1.5m long
  • 60m cable length on each unit
  • 480 volt/30 amp/3 phase plug

Configuration

Specifications

Configuration

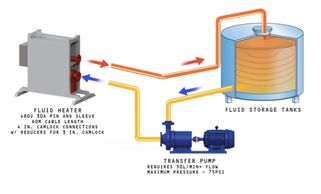

  • Can be used in single  or multi-tank operation
  • Insulated tanks recommended for water based applications
  • Multiple heaters can be connected in series to achieve faster heat-up
  • 480v/30 Amp/3P power supply outlet
  • Install in-line with any circulating system
